Laboratory SPJ and SLJ Toys Testing Equipment Manual Vertical Test Stand-Tension
Product information:

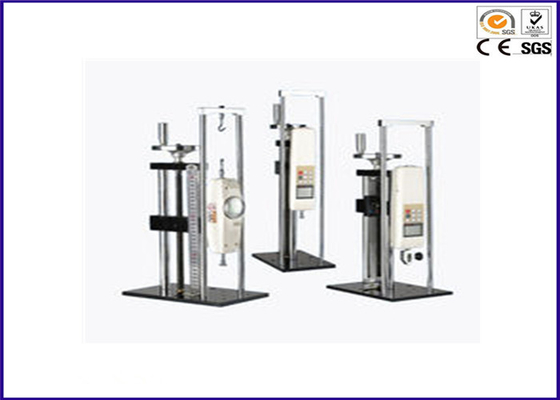

Manual test stands offer basic testing and economy, lever models offer rapid testing and wheel models precise control. Combine with any of the standard range Imada force gauges and special attachments to create specific force measurement applications for push, pull, snap, peel, penetration, etc. Capacities up to 500 Newtons.

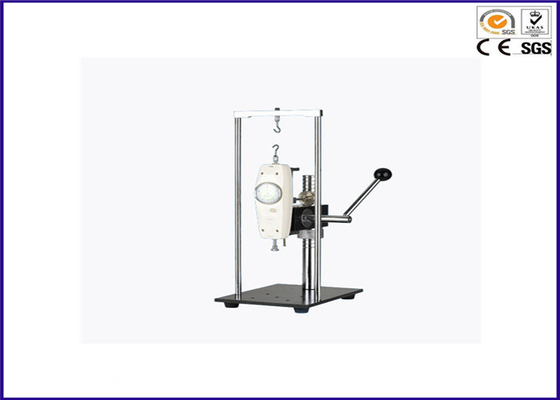

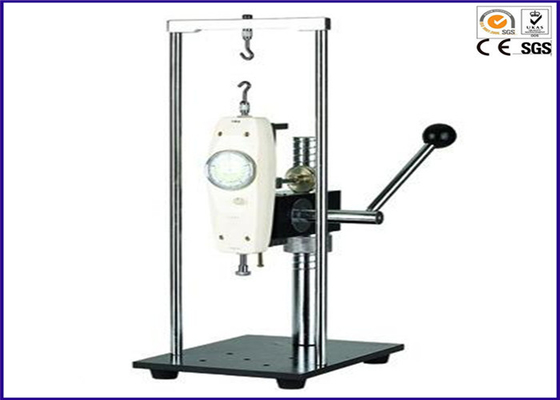

SPJ
Capacity: 500N
Stroke: 75mm L:235XW: 152XH:400 mm
Net Weight: 9.8Kg
SPJ is a Manual operation, easy and stable to operate. May install the stand on table for using, this installation is more steady. Compact construction. SPJ can be fixed digital distance meter to measure the distortion.

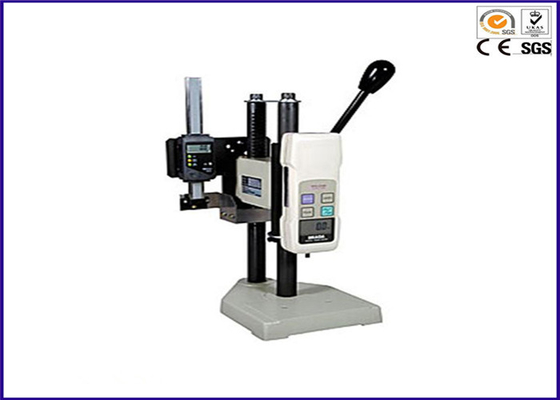

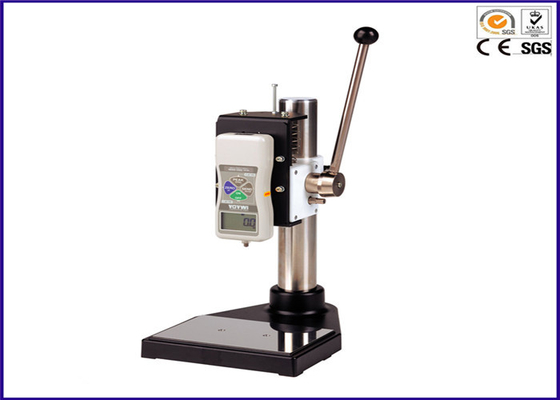

SLJ
SLJ is a tester stand especially designed to match SN,SH series .and can be combined into a wide use of stand ,which usually applied in various testing purpose, such as switch test, connector insertion/withdraw test, and fracture tester. Vertical and Horizontal model. Manual operation, T-screw stroke power transfer, Easy and stable to operate. May install the stand on table for using, this installation is more steady.
Capacity: 500N
Stroke: 150mm
L:250XW: 152XH:540 mm
Net Weight: 8.8kg
SLJ can be fixed digital distance meter to measure the distortion.
