Taber Abrasion Testing Rotary Abrasion Grinding Wheel Textile Testing Equipment
Rotary Abrasion Tester 1
This machine is designed for determining the resistance of textile products to abrasion. The specimen fixed to the cone rubs against the sand paper at a given load. This rub is conducted along the generatrix of the cone continuously and hence the friction effect is produced in the tangential direction.
|
Contact angle of tapered clamp
|
166°
|
|
Rotating speed of tray
|
75 cpm
|
|
Load
|
05N¡«25N(Adjustable)
|
|
Grain size of emery paper
|
280#,400#
|
|
Friction area of specimen
|
50cm2
|
|
Dimension(approx)
|
34cm×60cm×63cm
|
|
Weight(approx)
|
50kg
|
|
Power
|
1 AC220V50Hz(specified by user)
|

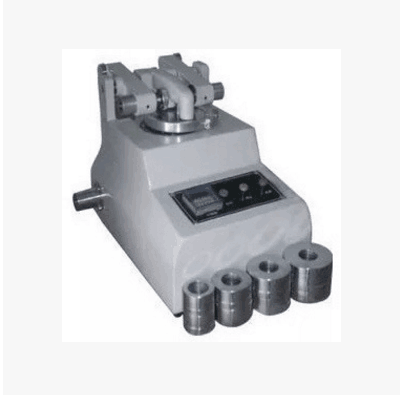

Instruments:
Can detect including metal, coating, plate surface, coating materials, textiles, leather, rubber and so on wear resistance.Through a pair of rotating friction wheel "X" type friction effect.
Equipped with a full range of auxiliary weights, the sample holder, friction wheel, vacuum unit, film type control keyboard and electronic counter.
Technical parameters:
1. The article number:
|
Molde
|
Simplex number
|
Weight
|
size
|
|
A
|
Simplex
|
20kg
|
330×320×310mm
|
|
B
|
duplex
|
25kg
|
330×420×310mm
|
2. Weight weight: heavy 250g weight: 250g /750g
3. The abrasion wheel center distance: 53.2 mm
4. The turning speed: 70 + 1 RPM (60 two kinds of speed regulation/RPM can switch)
5. The counter: LCD ,0-999999
6. Sample and dust collection tube distance: 3 mm
7. Power supply: AC220V 50 hz 5 a
According to the standard:
ISO 5470 ASTM D3884 DIN53863.2 FED. CCC. 5306/5309 DIN 53754 53799 53109
CNS - 3309, 3309, 6483, JIS - A1453 K6902, K6911, K7204, L1096, ASTM - D1175 D1044,
TAPPIT476ts - 63, TAPPI - T476
Standard configuration:
1pcs Wrench, 1pcs standard knife mould, 1pcs vacuum cleaners, stickers 50 piece,
Import standard grinding wheel for duable
Selection of the grinding wheel
Test block Coating Tiles Plywood Plastic
Grinding Wheel CS10, CS17 CS17 S32, S33 CS17, H18, H22
Standard configuration:
1pcs Wrench, 1pcs standard knife mould, 1pcs vacuum cleaners, stickers 50 piece,
Import standard grinding wheel for duable
Selection of the grinding wheel
Test block Coating Tiles Plywood Plastic
Grinding Wheel CS10, CS17 CS17 S32, S33 CS17, H18, H22
