Single Wing Carton Drop Tester Package Carton Box Drop Impact Testing Equipment
Description:
This tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
Specifications:
|
Drop Height |
300 - 1500mm |
|
Max Weight of Specimen |
65 kg |
|
Test space |
800×800×800 |
|
Impact board dimensions(mm) |
1400×1200 |
|
Corbel dimensions(mm) |
700×350 |
|
Motor |
Highten 1/3P,manual wide adjustment |
|
Overall dimensions(mm) |
1400×1200×2200 |
|
Net weight(kg) |
500 |
|
Power |
380V 50HZ 5A |
|
Meet the standard |
ISO22488-1972(E) |
|
Manner of execution |
Motor-driven drop, hand reset |
Theory:
This machine simulates the freedom drop movement from different heights.
Standard:
Design standards:GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
Feature:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.

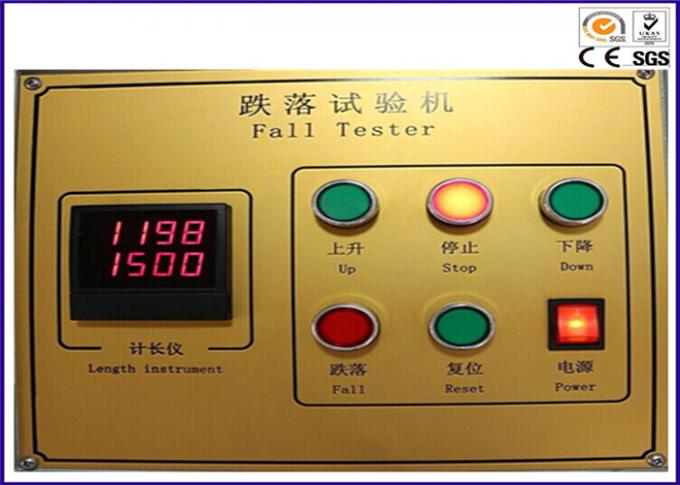

3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.
