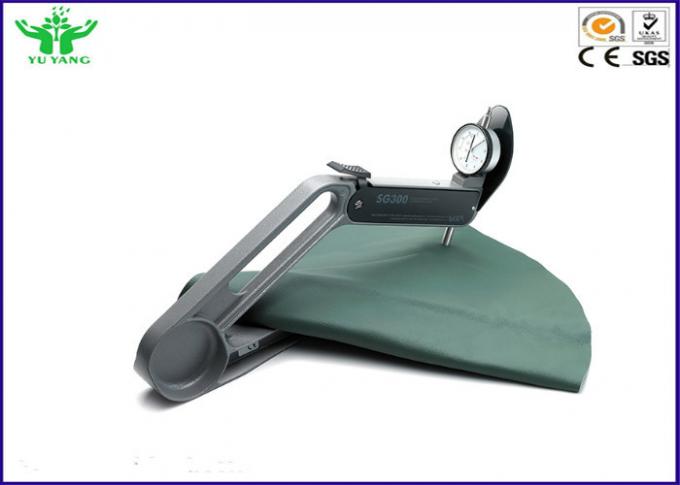

5Kg Portable Footwear Testing Equipment / Leather Softness Tester IULTCS. IUP 36
Descriptions:
Soft tester is for the leather and textile fabrics and other soft fabric soft-test design
Put the material in a known test hole on the aperture, and then through a small aperture will load imposed on the fabric, for reads deflection scale pointer value.
Standard:
IULTCS. IUP 36
Specifications:
Display table range: 0.1 ~ 10mm
Load: 500g
Test Ring Diameter: 20mm, 25mm
Size: 500 × 100 × 250mm
Weight: 5Kg
|
Test diameter |
25mm,20mm (optional) |
|
Loading |
530±10g or500g |
|
scale |
0.1~10mm(actual 0.1~7.6mm) |
|
Volume |
13× 48 × 17cm |
|
weight |
5kg |
NOTE:
All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
If any specification or content of product has changed, please refer to our company's actual price list.
