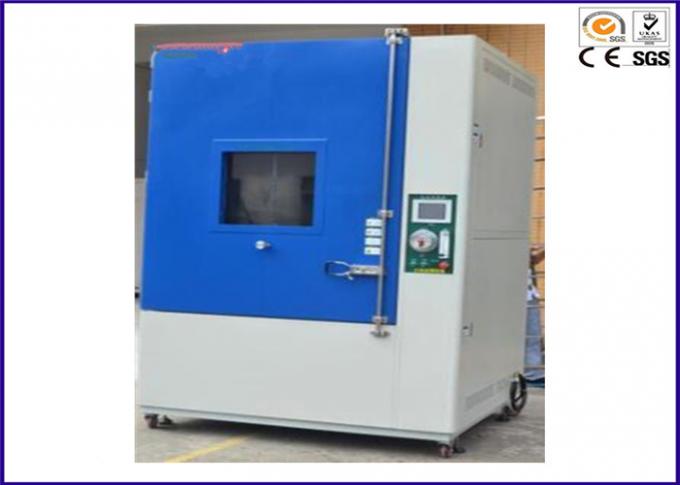

IEC60529 Digital Displayer Sand / Dust Environmental Test Chamber for IPX1 - 8 Test
Application:
Dust and sand test chamber for dust proof testing is mainly and widely used to test products sealing and dust resistance in labs of many fields, like Electrical, electronic, automobile, motorcycle and sealing products and parts manufacturing industries.
Dust proof chamber is applicable to electronic electrician, home appliance, automotive, instruments and meters, chemicals and spare parts in dust proof , sand & dust resistant ability. It can be used for IP1X to IP8X test.
Design Standards:
GB2423.37-2006
GB4208-2008/IEC60529:2001 shell entrench level
GJB150.12-2009 dust test method(dust proof test)
GB7000-1-2007 chapter 9 requirement for shell entrench test
GB10485 dust proof test method and equivalent JIS ,DIN,MIL test standard
Parameter:
1) mesh size: standard 200 rows with 75um diameter, if customer special requirement, we can equip the max diameter is 200um for 75 rows
2) wind speed: ≥7.5m/s
3) blowing dust concentration:1kg/m3
4) standard machine will use talcum powder for test dust, if customer need to use other kind of dust, our company do not equip the dust test for the first time, customer need to equip the dust by himself.
Specification:
|
Model number |
YY1025-500 |
YY1025-800 |
YY1025-1000 |
YY1025-1500 |
YY1025-2000 |
|
Chamber capacity (L) |
500 |
800 |
1000 |
1500 |
2600 |
|
Technique
|
Metal screen spacing |
50um |
|
Metal wire
diameter
|
75um |
|
Talcum powder
dosage
|
2Kg/m ² ~4Kg/m ² |
|
Dust fall form |
1 Decline the dust type freely: the adoption leaves the heart breeze
machine to blow the sand dust to the box to take over 1/5 make it
sink freely.
|
|
2. Blow the sand dust: The barometric type of bottom sprays the ash,
three file pressures are adjustable
|
|
Chamber
size(cm)
|
D |
80 |
90 |
100 |
100 |
120 |
|
W |
80 |
90 |
100 |
100 |
120 |
|
H |
80 |
100 |
100 |
150 |
180 |
|
Material |
Chamber/ Oven |
SUS304 # stainless steel |
|
Machine shell |
Cold rolled sheet antirust coating processing or #SUS304
stainless steel (optional)
|
|
Control
system
|
Operator interface |
The liquid crystal display color touch screen controller or touch-tone
LCD controller(optional)
|
|
Operation mode |
program operation/ constant type operation |
|
Sensor |
PT-100 Sensor |
|
Power supply |
AC380V or 220V ±10%, 50HZ |
|
Standard |
Two pieces of test material shelf, one instruction, and one dust screen |
